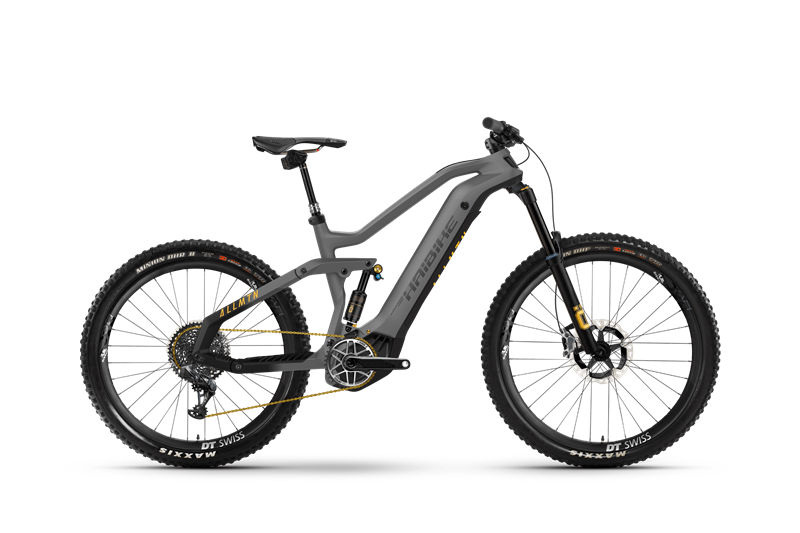

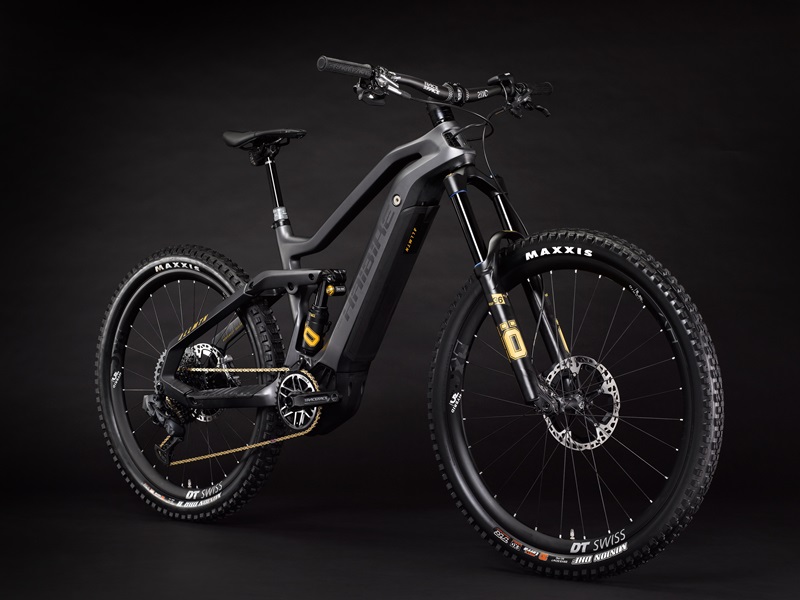

HAIBIKE ALLMTN SE 2021

Description

• Cadre, fourche

Cadre: Haibike, AllMtn i600, Carbon

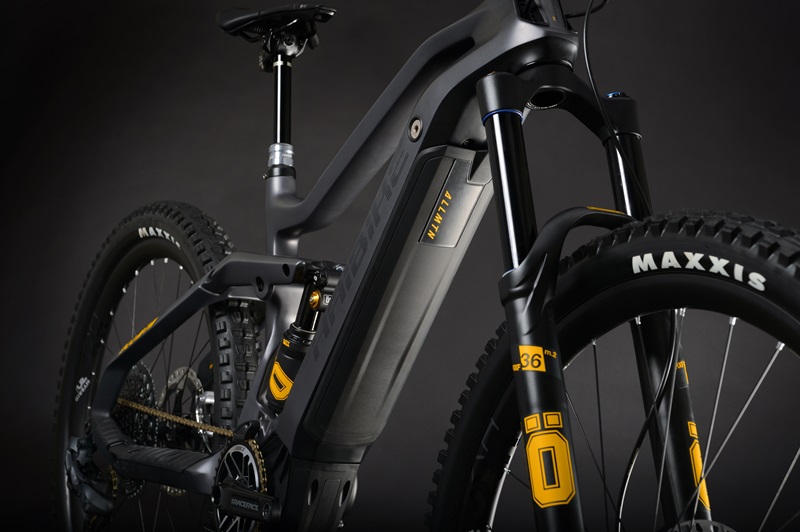

Fourche: Öhlins, RXF36, Air, Travel= 160 mm, Aluschaft 1 1/8 – 1 1/2″ tapered, 15 x 110mm thru-axle Boost

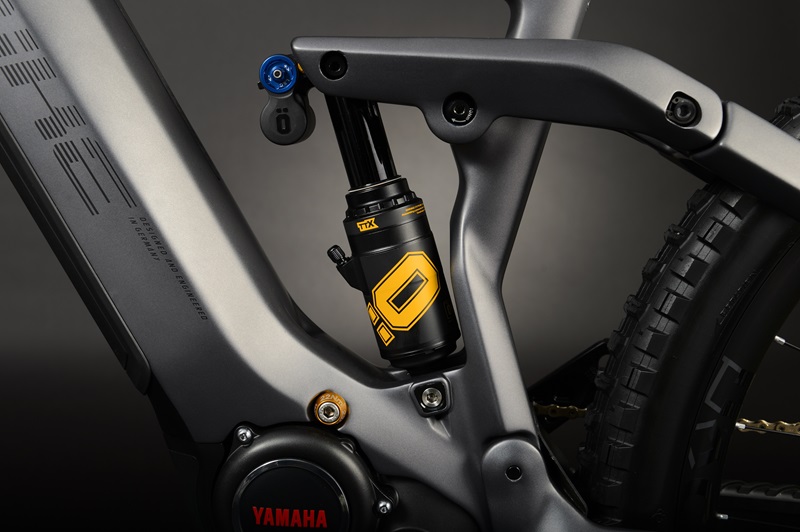

Amortisseur: Öhlins, TTX Air Extended, Air, Trunnion Mount M8x25

• Moteur, batterie

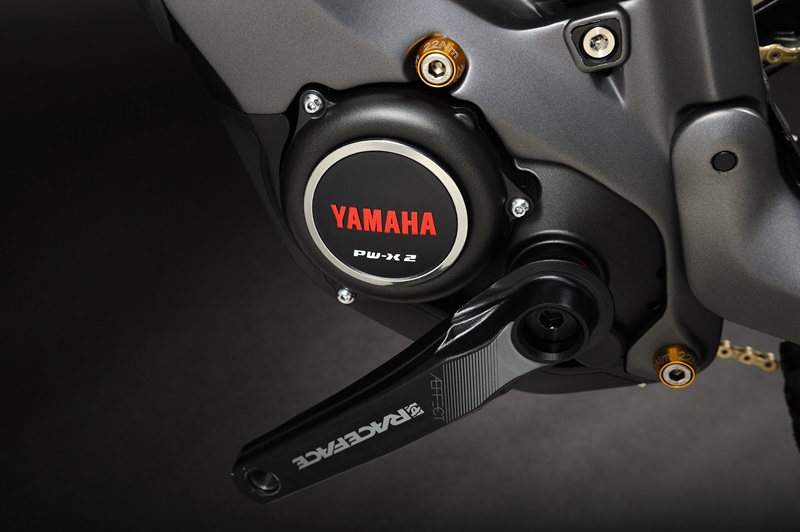

Moteur: Yamaha, PW-X2, 250W, 80 Nm, 25 km/h

Batterie: Yamaha, 600 Wh

Ecran: Yamaha, Side Switch, 1.7″ LCD, 7 functions

• Groupe

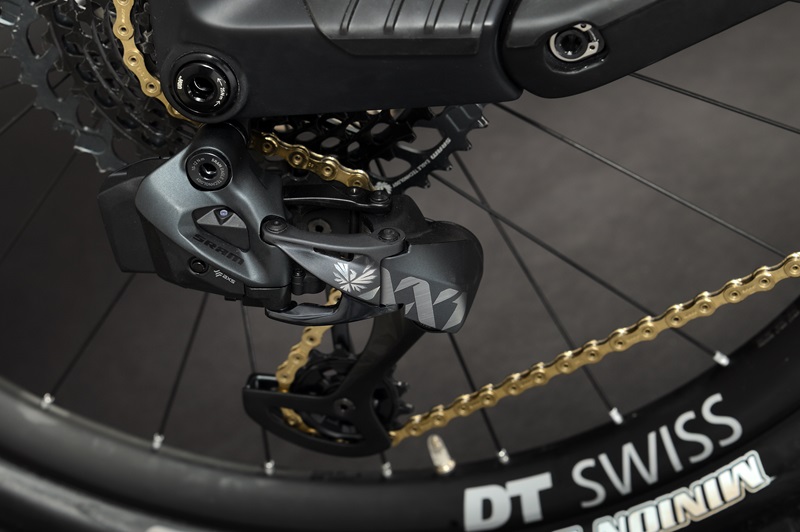

Dérailleur arrière: Sram, XX1 Eagle AXS

Manette: Sram, Eagle XX1 AXS, Trigger switch, 12 Speed

Cassette: Sram, Eagle XG1295, 10 – 52 teeth

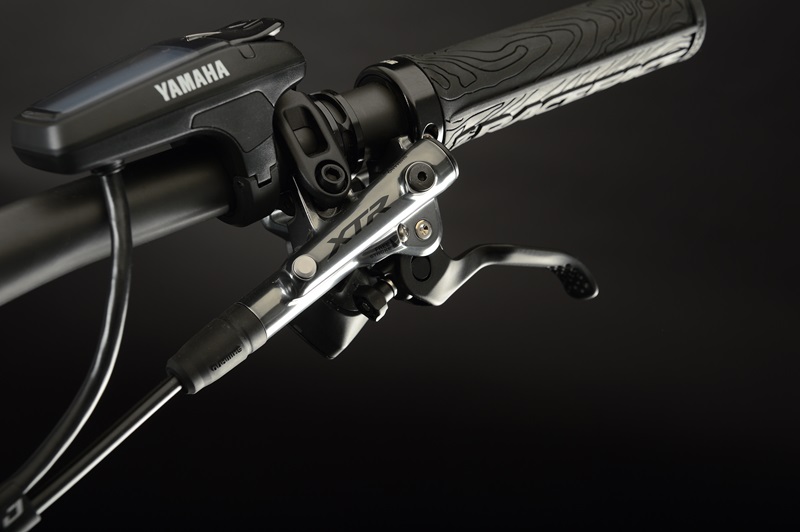

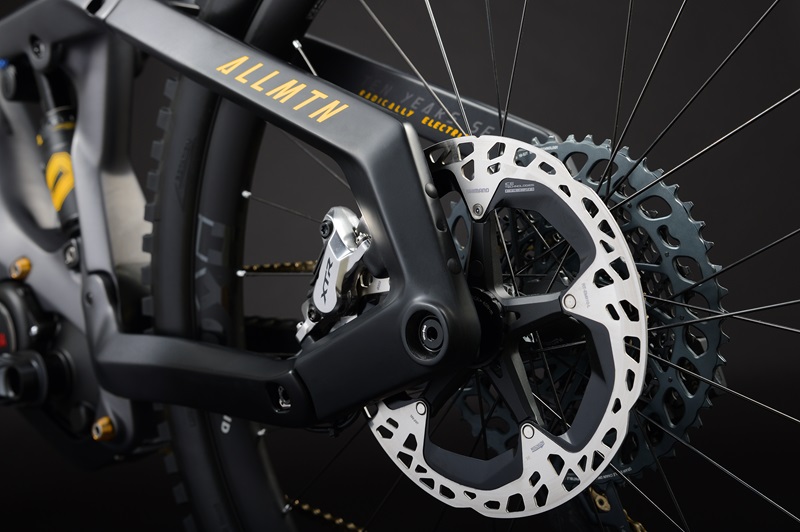

Freins: Shimano, XTR M9120, 203 mm, 4-piston disc brake

Plateau: Haibike Components, Aluminium, 38 teeth

• Périphériques

Cintre: Raceface, Six C Carbon, 785 mm

Potence: Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm

Tige de selle: Sram, Reverb AXS, Aluminium, Telescope, 31.6 mm

Selle: Prologo, Proxim W450

• Pneus, roues

Pneus arrière: Maxxis, Minion DHR II, 71-584, 27.5″ x 2.8″

Pneus avant: Maxxis, Minion DHF II, 63-622, 29″ x 2.5″

Roues: DT Swiss, HXC1200 Carbon
